Artifacts

Artifacts persist data after a step completes, so you can use them as storage for deployment packages.

Microtica supports three types of artifacts:

• File artifacts
• JSON artifacts
• Container artifacts

File artifacts

File artifacts are the most common type. Use them to produce a deployable package of plain files organized in a folder structure.

steps:
  step_name:
    ...
    artifacts:
      files:
        [artifact-name]: [path-to-folder-or-files]

The example below is a pipeline step that installs node modules and compiles the source code. Once the commands run, a new dst/ folder holds the compiled code and its modules, and you want to package only that folder.

steps:
  BuildNodeApp:
    image: node:latest
    commands:
      - npm install
      - npm run build
    artifacts:
      files:
        primary: dst/

Here you've defined one artifact named primary (the name is just a way to tell multiple artifacts apart). The artifact contains every file and folder inside the local dst/ path.

To define an artifact that contains only one specific file, provide the path to the file:

steps:
  BuildNodeApp:
    image: node:latest
    commands:
      - npm install
      - npm run build
    artifacts:
      files:
        primary: dst/index.js

You can also select multiple files using standard Unix filename wildcard syntax:

steps:
  BuildNodeApp:
    image: node:latest
    commands:
      - npm install
      - npm run build
    artifacts:
      files:
        primary: dst/*.js

This example produces an artifact containing all files with a .js extension in the dst folder.

To define secondary artifacts, add them under files.

artifacts:
  files:
    primary: /dst
    assets_artifact: /assets

JSON artifacts

You can define structured artifacts in JSON format and reference them from other steps.

You point to a JSON file saved locally during the step execution. The JSON object then becomes available to other steps through common JS syntax.

artifacts:
  json: [path-to-json-file]

To see this in action, define a pipeline that first provisions the cloud infrastructure to host a SPA website, then deploys the source code to S3.

steps:
  DeployInfra:
    title: Provision SPA infrastructure on AWS
    image: hashicorp/terraform:latest
    commands:
      - terraform init
      - terraform apply -auto-approve
      - terraform output -json > terraform.output
    artifacts:
      json: terraform.output
  DeployWebsite:
    title: Deploy SPA website
    image: aws/codebuild/standard:4.0
    commands:
      - echo Website is being deployed...
      # Reference json artifacts from DeployInfra step
      - aws s3 sync . ${DeployInfra.artifactsBucket}
      - aws cloudfront create-invalidation --distribution-id ${DeployInfra.cdnId}

In the DeployInfra step, Terraform generates a terraform.output file: a JSON file containing the outputs of the provisioned infrastructure.

The DeployWebsite step then references those outputs with ${DeployInfra.artifactsBucket} syntax. artifactsBucket is a property from the terraform.output file.

Container artifacts

Microtica has built-in support to build and push container images to your preferred Docker registry.

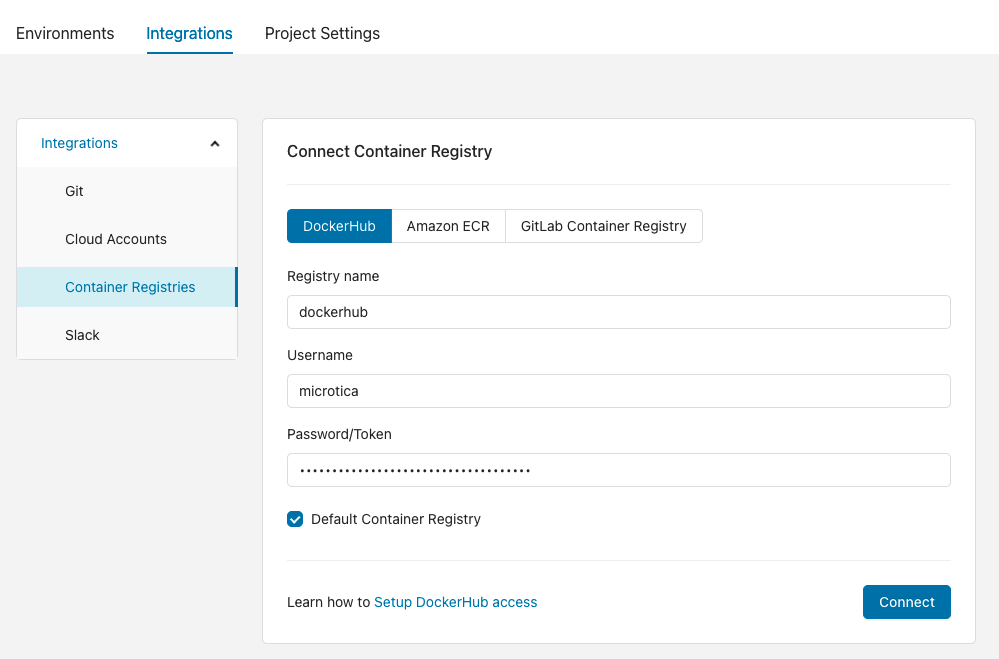

To start working with container artifacts, first connect a container registry from the Microtica console. To connect a new registry, go to Project Integrations → Container Registries.

The name you give a registry when you connect it is the one you use in the pipeline YAML to set the artifact destination.

steps:
  BuildAndPushDocker:
    type: docker-push
    image_name: microtica/my-app
    tag: v0.1.0
    dockerfile: Dockerfile
    # optional, if not specified, default will be used
    registry: dockerhub

After the BuildAndPushDocker step completes, an image named microtica/my-app with tag v0.1.0 is pushed to the dockerhub registry connected in Microtica.
